CUSTOM

Get a Quote
For a quote on your custom requirements please send us your drawing or specification.

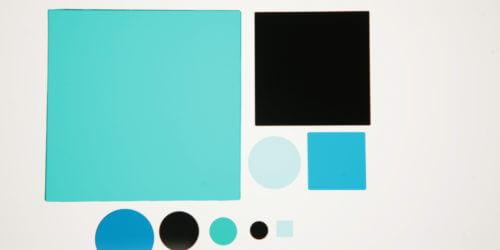

Schott Bandpass Filters

UQG Optics Schott Bandpass colour glass filters are used to transmit a section of the spectrum and rejecting all other wavelengths. These high stability and durability filters join a region of high transmission (pass band) and shorter/longer wavelength blocking range (low transmission). The filter glass is manufactured in different thicknesses which multiply the number of filter effects. By combining different filters together you can achieve additional filter effects.

Commonly used for chemical, forensic, medical and pharmaceutical applications. They are also a popular filter in R&D industries.

We stock a complete wavelength range of Schott glass filters and our custom range is extensive polishing to precise thicknesses. Options includes optical coatings and low cost filter equivalents for less demanding applications.

Please contact our sales team.

View RoHS Statement

Dimensions:	Diameters 5mm to 160mm
	Squares/Rectangles 1mm x 1mm to 165mm x 165mm
Thickness Range:	0.50mm to 6mm (subject to dimension)
Edge Finish:	As cut/chamfered, ground or polished
Surface Flatness:	Up to lambda 4 (@633nm)
Parallelism:	Up to 1 arc min
Material Options:	Commercial grade, optical glass filters for larger sizes over 160mm x 160mm
	Low cost optical filter range for less demanding applications (data sheet on request)
Coating Options:	MgF2 protective coatings, AR coatings, bandpass & blocking optical coatings
Options:	Additional filter types, combination filters, toughening, storage boxes transmission curves, calibration certificates, identification labels, mounts & holders

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

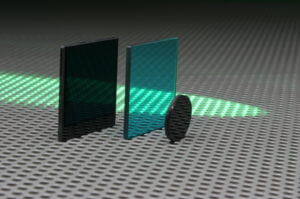

Material:

SCHOTT ® or equivalent Filter Glass

Dimension Tolerance:

Diameters +0.00/-0.20mm

Squares ±0.20mm

Thickness Tolerance:

± 0.10mm

Edge Thickness:

Fine ground

Surface Quality:

60/40 Scratch/Dig

Surface Flatness:

Ø12.5mm ≤ 3 Fringes (@633nm)

Ø25mm ≤ 5 Fringes (@633nm)

50x50mm ≤ 8 Fringes (@633nm)

Parallelism:

≤ 3 Arc mins

Coating:

Magf2 both sides - please note coating only where stated

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.

Part numbers listed with enquire, please contact us for prices & delivery times.

Select Your Currency:

Part No	Data sheet	Description	Thickness (mm)	Dimensions (mm)	Unit price (1-10) excl. VAT	Qty	Qty (10+)Volume pricing available for 10+, please add to quote.
FBG-712	PDF	Schott BG7	3	Ø 12.5	£12.00	QTY Schott BG7 quantity	Added to Quote
FBG-725	PDF	Schott BG7	3	Ø 25	£15.95	QTY Schott BG7 quantity	Added to Quote
FBG-750	PDF	Schott BG7	3	50 x 50	£31.80	QTY Schott BG7 quantity	Added to Quote
FBG-1812	PDF	Schott BG18	2	Ø 12.5	£12.00	QTY Schott BG18 quantity	Added to Quote
FBG-1825	PDF	Schott BG18	2	Ø 25	£15.95	QTY Schott BG18 quantity	Added to Quote
FBG-1850	PDF	Schott BG18	2	50 x 50	£33.60	QTY Schott BG18 quantity	Added to Quote
FUG-112	PDF	Schott UG1	2	Ø 12.5	£12.00	QTY Schott UG1 quantity	Added to Quote
FUG-125	PDF	Schott UG1	2	Ø 25	£15.95	QTY Schott UG1 quantity	Added to Quote
FUG-150	PDF	Schott UG1	2	50 x 50	£31.80	QTY Schott UG1 quantity	Added to Quote
FUG-2253	PDF	Schott UG2A	3	Ø 25	£36.00	QTY Schott UG2A quantity	Added to Quote
FUG-512	PDF	Schott UG5	3	Ø 12.5	£18.00	QTY Schott UG5 quantity	Added to Quote
FUG-525	PDF	Schott UG5	3	Ø 25	£27.00	QTY Schott UG5 quantity	Added to Quote
FUG-550	PDF	Schott UG5	3	50 x 50	£52.50	QTY Schott UG5 quantity	Added to Quote
FUG-11121	PDF	Schott UG11	1	Ø 12.5	£18.00	QTY Schott UG11 quantity	Added to Quote
FUG-1112	PDF	Schott UG11	3	Ø 12.5	£19.00	QTY Schott UG11 quantity	Added to Quote
FUG-1121	PDF	Schott UG11	1	Ø 25	£28.00	QTY Schott UG11 quantity	Added to Quote
FUG-1125	PDF	Schott UG11	3	Ø 25	£27.00	QTY Schott UG11 quantity	Added to Quote
FUG-1150	PDF	Schott UG11	3	50 x 50	£52.50	QTY Schott UG11 quantity	Added to Quote
FUG-525C	PDF	Schott UG5 (coated)	3	Ø 25	£37.80	QTY Schott UG5 (coated) quantity	Added to Quote
FUG-1112C	PDF	Schott UG11 (coated)	3	Ø 12.5	£25.00	QTY Schott UG11 (coated) quantity	Added to Quote
FUG-1125C	PDF	Schott UG11 (coated)	3	Ø 25	£38.00	QTY Schott UG11 (coated) quantity	Added to Quote
FUG-1150C	PDF	Schott UG11 (coated)	3	50 x 50	£65.00	QTY Schott UG11 (coated) quantity	Added to Quote

Part Number

FBG-712

Schott BG7

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 12.5

UNIT PRICE (1-10)

£12.00 Inc. VAT

Part Number

FBG-725

Schott BG7

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£15.95 Inc. VAT

Part Number

FBG-750

Schott BG7

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3

UNIT PRICE (1-10)

£31.80 Inc. VAT

Part Number

FBG-1812

Schott BG18

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.5

UNIT PRICE (1-10)

£12.00 Inc. VAT

Part Number

FBG-1825

Schott BG18

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£15.95 Inc. VAT

Part Number

FBG-1850

Schott BG18

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2

UNIT PRICE (1-10)

£33.60 Inc. VAT

Part Number

FUG-112

Schott UG1

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.5

UNIT PRICE (1-10)

£12.00 Inc. VAT

Part Number

FUG-125

Schott UG1

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£15.95 Inc. VAT

Part Number

FUG-150

Schott UG1

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2

UNIT PRICE (1-10)

£31.80 Inc. VAT

Part Number

FUG-2253

Schott UG2A

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£36.00 Inc. VAT

Part Number

FUG-512

Schott UG5

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 12.5

UNIT PRICE (1-10)

£18.00 Inc. VAT

Part Number

FUG-525

Schott UG5

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£27.00 Inc. VAT

Part Number

FUG-550

Schott UG5

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3

UNIT PRICE (1-10)

£52.50 Inc. VAT

Part Number

FUG-11121

Schott UG11

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 12.5

UNIT PRICE (1-10)

£18.00 Inc. VAT

Part Number

FUG-1112

Schott UG11

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 12.5

UNIT PRICE (1-10)

£19.00 Inc. VAT

Part Number

FUG-1121

Schott UG11

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£28.00 Inc. VAT

Part Number

FUG-1125

Schott UG11

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£27.00 Inc. VAT

Part Number

FUG-1150

Schott UG11

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3

UNIT PRICE (1-10)

£52.50 Inc. VAT

Part Number

FUG-525C

Schott UG5 (coated)

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£37.80 Inc. VAT

Part Number

FUG-1112C

Schott UG11 (coated)

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 12.5

UNIT PRICE (1-10)

£25.00 Inc. VAT

Part Number

FUG-1125C

Schott UG11 (coated)

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£38.00 Inc. VAT

Part Number

FUG-1150C

Schott UG11 (coated)

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£65.00 Inc. VAT
