Mounted UV/IR Blocking Filters

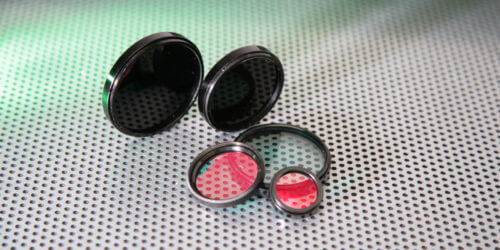

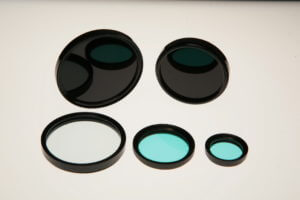

UQG Optics mounted UV/IR Blocking filters are made in Hoya or Schott absorptive filter material and also a multi layered coated Optical glass. These filters are primarily used to block unwanted IR and transmit the visible range or designed to transmit the infrared only. They protect systems and sensors from harmful IR radiation and commonly used in camera and machine vision applications. The filters are mounted into black 5.50mm thick filter mounts in a range threaded screw mounts from our stock range. We can also supply custom mounts from 25.50mm to 105mm with added screen printed.

Please contact our sales team.

View RoHS Statement

Mount Dimensions:	M25.50 to M105.00mm
Mount Option:	Screen printed
Material Options:	Filters from Schott® & Hoya®

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

UV/VIS CUT

Material:

HOYA® R72

Mount Thickness:

5.50mm

Surface Quality:

60/40 Scratch/Dig

Spectral Data:

720/2750nm

IR CUT

Material:

SCHOTT® KG3

Mount Thickness:

5.50mm

Surface Quality:

60/40 Scratch/Dig

Spectral Data

320/700nm

MOUNTED UV/IR BLOCKING FILTER

Material:

Float Glass

Coating:

Multilayer coated AR coated

Cut off 380/670nm

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.

Part numbers listed with enquire, please contact us for prices & delivery times.

Select Your Currency:

Part No	Data sheet	Description	Dimensions (mm)	Thread Mount	Unit price (1-10) excl. VAT	Qty	Qty (10+)Volume pricing available for 10+, please add to quote.
MIR-7249	PDF	Hoya R72 Mounted	0.75 Pitch	Ø M49.00	£22.00	QTY Hoya R72 Mounted quantity	Added to Quote
MIR-7252	PDF	Hoya R72 Mounted	0.75 Pitch	Ø M52.00	£24.00	QTY Hoya R72 Mounted quantity	Added to Quote
MIR-7258	PDF	Hoya R72 Mounted	0.75 Pitch	Ø M58.00	£32.00	QTY Hoya R72 Mounted quantity	Added to Quote
MIR-3490	PDF	Schott KG3 Mounted	0.75 Pitch	Ø M49.00	£72.00	QTY Schott KG3 Mounted quantity	Added to Quote
MIR-3520	PDF	Schott KG3 Mounted	0.75 Pitch	Ø M52.00	£78.00	QTY Schott KG3 Mounted quantity	Added to Quote
MIR-3580	PDF	Schott KG3 Mounted	0.75 Pitch	Ø M58.00	£86.00	QTY Schott KG3 Mounted quantity	Added to Quote
ICM-2550	PDF	Mounted UV/IR Blocking Filter	0.50 Pitch	Ø M25.50	£55.00	QTY Mounted UV/IR Blocking Filter quantity	Added to Quote
ICM-3050	PDF	Mounted UV/IR Blocking Filter	0.50 Pitch	Ø M30.50	£55.00	QTY Mounted UV/IR Blocking Filter quantity	Added to Quote
ICM-3700	PDF	Mounted UV/IR Blocking Filter	0.75 Pitch	Ø M30.50	£60.00	QTY Mounted UV/IR Blocking Filter quantity	Added to Quote
ICM-3750	PDF	Mounted UV/IR Blocking Filter	0.50 Pitch	Ø M37.50	£60.00	QTY Mounted UV/IR Blocking Filter quantity	Added to Quote
ICM-3900	PDF	Mounted UV/IR Blocking Filter	0.50 Pitch	Ø M39.00	£60.00	QTY Mounted UV/IR Blocking Filter quantity	Added to Quote
ICM-4050	PDF	Mounted UV/IR Blocking Filter	0.50 Pitch	Ø M40.50	£65.00	QTY Mounted UV/IR Blocking Filter quantity	Added to Quote
ICM-4300	PDF	Mounted UV/IR Blocking Filter	0.75 Pitch	Ø M43.00	£65.00	QTY Mounted UV/IR Blocking Filter quantity	Added to Quote
ICM-4600	PDF	Mounted UV/IR Blocking Filter	0.75 Pitch	Ø M46.00	£65.00	QTY Mounted UV/IR Blocking Filter quantity	Added to Quote
ICM-4900	PDF	Mounted UV/IR Blocking Filter	0.75 Pitch	Ø M49.00	£70.00	QTY Mounted UV/IR Blocking Filter quantity	Added to Quote
ICM-5200	PDF	Mounted UV/IR Blocking Filter	0.75 Pitch	Ø M52.00	£70.00	QTY Mounted UV/IR Blocking Filter quantity	Added to Quote
ICM-5800	PDF	Mounted UV/IR Blocking Filter	0.75 Pitch	Ø M58.00	£70.00	QTY Mounted UV/IR Blocking Filter quantity	Added to Quote
ICM-6200	PDF	Mounted UV/IR Blocking Filter	0.75 Pitch	Ø M62.00	£70.00	QTY Mounted UV/IR Blocking Filter quantity	Added to Quote

Part Number

MIR-7249

Hoya R72 Mounted

PDF Data sheet

Dimensions (mm) 0.75 Pitch

Thread Mount Ø M49.00

Focal Length (mm) 0

UNIT PRICE (1-10)

£22.00 Inc. VAT

Part Number

MIR-7252

Hoya R72 Mounted

PDF Data sheet

Dimensions (mm) 0.75 Pitch

Thread Mount Ø M52.00

Focal Length (mm) 0

UNIT PRICE (1-10)

£24.00 Inc. VAT

Part Number

MIR-7258

Hoya R72 Mounted

PDF Data sheet

Dimensions (mm) 0.75 Pitch

Thread Mount Ø M58.00

Focal Length (mm) 0

UNIT PRICE (1-10)

£32.00 Inc. VAT

Part Number

MIR-3490

Schott KG3 Mounted

PDF Data sheet

Dimensions (mm) 0.75 Pitch

Thread Mount Ø M49.00

Focal Length (mm) 0

UNIT PRICE (1-10)

£72.00 Inc. VAT

Part Number

MIR-3520

Schott KG3 Mounted

PDF Data sheet

Dimensions (mm) 0.75 Pitch

Thread Mount Ø M52.00

Focal Length (mm) 0

UNIT PRICE (1-10)

£78.00 Inc. VAT

Part Number

MIR-3580

Schott KG3 Mounted

PDF Data sheet

Dimensions (mm) 0.75 Pitch

Thread Mount Ø M58.00

Focal Length (mm) 0

UNIT PRICE (1-10)

£86.00 Inc. VAT

Part Number

ICM-2550

Mounted UV/IR Blocking Filter

PDF Data sheet

Dimensions (mm) 0.50 Pitch

Thread Mount Ø M25.50

UNIT PRICE (1-10)

£55.00 Inc. VAT

Part Number

ICM-3050

Mounted UV/IR Blocking Filter

PDF Data sheet

Dimensions (mm) 0.50 Pitch

Thread Mount Ø M30.50

UNIT PRICE (1-10)

£55.00 Inc. VAT

Part Number

ICM-3700

Mounted UV/IR Blocking Filter

PDF Data sheet

Dimensions (mm) 0.75 Pitch

Thread Mount Ø M30.50

UNIT PRICE (1-10)

£60.00 Inc. VAT

Part Number

ICM-3750

Mounted UV/IR Blocking Filter

PDF Data sheet

Dimensions (mm) 0.50 Pitch

Thread Mount Ø M37.50

UNIT PRICE (1-10)

£60.00 Inc. VAT

Part Number

ICM-3900

Mounted UV/IR Blocking Filter

PDF Data sheet

Dimensions (mm) 0.50 Pitch

Thread Mount Ø M39.00

UNIT PRICE (1-10)

£60.00 Inc. VAT

Part Number

ICM-4050

Mounted UV/IR Blocking Filter

PDF Data sheet

Dimensions (mm) 0.50 Pitch

Thread Mount Ø M40.50

UNIT PRICE (1-10)

£65.00 Inc. VAT

Part Number

ICM-4300

Mounted UV/IR Blocking Filter

PDF Data sheet

Dimensions (mm) 0.75 Pitch

Thread Mount Ø M43.00

UNIT PRICE (1-10)

£65.00 Inc. VAT

Part Number

ICM-4600

Mounted UV/IR Blocking Filter

PDF Data sheet

Dimensions (mm) 0.75 Pitch

Thread Mount Ø M46.00

UNIT PRICE (1-10)

£65.00 Inc. VAT

Part Number

ICM-4900

Mounted UV/IR Blocking Filter

PDF Data sheet

Dimensions (mm) 0.75 Pitch

Thread Mount Ø M49.00

UNIT PRICE (1-10)

£70.00 Inc. VAT

Part Number

ICM-5200

Mounted UV/IR Blocking Filter

PDF Data sheet

Dimensions (mm) 0.75 Pitch

Thread Mount Ø M52.00

UNIT PRICE (1-10)

£70.00 Inc. VAT

Part Number

ICM-5800

Mounted UV/IR Blocking Filter

PDF Data sheet

Dimensions (mm) 0.75 Pitch

Thread Mount Ø M58.00

UNIT PRICE (1-10)

£70.00 Inc. VAT

Part Number

ICM-6200

Mounted UV/IR Blocking Filter

PDF Data sheet

Dimensions (mm) 0.75 Pitch

Thread Mount Ø M62.00

UNIT PRICE (1-10)

£70.00 Inc. VAT

Mounted UV/IR Blocking Filters
