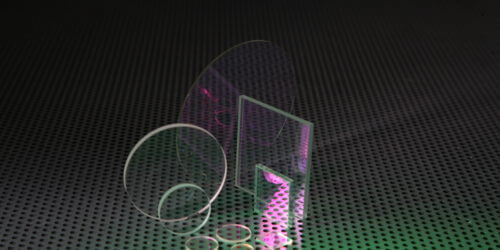

UV Blocking Filters

UQG UV Blocking filters block harmful UV radiation and with the dielectric oxide coating this allows excellent transmission of the visible wavelength. It protects UV sensitive materials, products and components. The filters will reduce photochemical degradation without damage to the components when the light source is intensified. In addition to coated UV blocking filters there is a range of UV blocking glasses available in sheet glasses for science and industrial applications.

UQG optics stock windows and plates with the option to custom coat different materials.

Please contact our sales team.

View RoHS Statement

Dimensions:	Diameters 5mm to 400mm
	Squares/Rectangles 1mm x 1mm to 300mm x 300mm
Thickness Range:	1.10mm to 3.00mm
Material Options:	UV blocking filter sheet & Optivex UV blocking glass 3mm thick
Coating Options:	UV blocking optical coatings

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:

Borosilicate® Coated Glass UVK-02

Dimension Tolerance:

Diameters +0.00/-0.20mm

Squares:±0.20mm

Thickness Tolerance:

± 0.10mm

Edge Thickness:

Diameters ground

Squares as cut & chamfered

Spectral Data:

UV Transmission 300-400nm max<3% avg<1%

VIS Transmission 440-690nm avg > 96% min >94%

Transmission 50% @ 410nm(±5nm)

Broadband AR coated one side

Angle of Incidence

0°

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.

Part numbers listed with enquire, please contact us for prices & delivery times.

Select Your Currency:

Part No	Data sheet	Description	Dimensions (mm)	Thickness (mm)	Unit price (1-10) excl. VAT	Qty	Qty (10+)Volume pricing available for 10+, please add to quote.

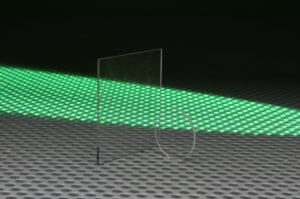

UVK-2510	PDF	UV Blocking Filter	Ø 25	1.10	£18.00	QTY UV Blocking Filter quantity	Added to Quote
UVK-5051	PDF	UV Blocking Filter	50 x 50	1.10	£30.00	QTY UV Blocking Filter quantity	Added to Quote

Part Number

UVK-5051

UV Blocking Filter

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1.10

Focal Length (mm) 0

UNIT PRICE (1-10)

£30.00 Inc. VAT

Part Number

UVK-2510

UV Blocking Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-10)

£18.00 Inc. VAT
