Neutral Density Filters - Reflective

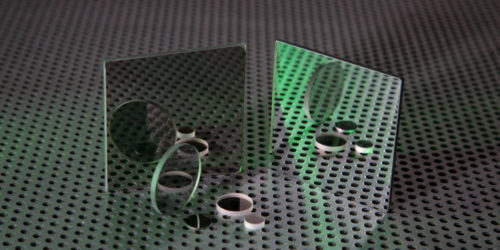

UQG ND Filters reflective are non-absorption filters which can control the light over an extensive spectral range. We have a wide range of different density’s available which can also be purchased to increase the required density by stacking them. These filter are ideal for laser applications due to its metallic coating.

Reflective coated metallic ND filters are coated in two glass types. The visible IR range is ND coated on optical glass to cover 350nm to 2500nm. The UV range is coated on fused silica for use down to 170nm. Please be aware the densities are coated for 550nm, but in the UV this will give up to 40% higher density.

UQG Optics offers a wide range of densities with a custom additional options like calibration certificates, boxed, transmission/absorbance curves and many more.

Please contact our sales team.

View RoHS Statement

Dimensions:	Diameters 5mm to 300mm
	Squares/Rectangles 1mm x 1mm to 300mm x 300mm
	OD 0.10 to OD 4
Thickness Range:	0.30mm to 6.00mm (subject to dimension)
Options:	Transmission curves 400-1100nm, absorbance curves 400-1100nm, calibration certificates, spot reading @ wavelengths, identification labels, storage boxes, mounts & holders

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Neutral Density Filters - VIS IR Reflective Stock

Material:

Optical Glass

Dimension Tolerance:

Ø25 +0.00/- 0.20mm

Thickness Tolerance:

± 0.20mm

Edge Finish:

Fine ground/As cut chamfered

Coating:

Metallic

Spectral Data:

350 - 2500nm

Optical Density:

±5% @ 550nm

Material:

Optical Glass

Dimension Tolerance:

50mm x 50mm +/- 0.20mm

Thickness Tolerance:

± 0.20mm

Edge Thickness:

Fine ground/As cut chamfered

Coating:

Metallic

Spectral Range:

350 - 2500nm

Optical Density:

±5% @ 550nm

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.

Part numbers listed with enquire, please contact us for prices & delivery times.

Select Your Currency:

Part No	Data sheet	Description	Thickness (mm)	Dimensions (mm)	Optical Density	Transmission	Unit price (1-10) excl. VAT	Qty	Qty (10+)Volume pricing available for 10+, please add to quote.
FDI-1200	PDF	Uncoated	2	Ø 12.5	0.03	93%	£15.00	QTY Uncoated quantity	Added to Quote
FDI-1201	PDF	ND Reflective	2	Ø 12.5	0.1	79%	£15.00	QTY ND Reflective quantity	Added to Quote
FDI-1203		ND Reflective	2	Ø 12.5	0.3	50%	£15.00	QTY ND Reflective quantity	Added to Quote
FDI-1205	PDF	ND Reflective	2	Ø 12.5	0.5	32%	£15.00	QTY ND Reflective quantity	Added to Quote
FDI-1206	PDF	ND Reflective	2	Ø 12.5	0.6	25%	£15.00	QTY ND Reflective quantity	Added to Quote
FDI-1208	PDF	ND Reflective	2	Ø 12.5	0.8	16%	£15.00	QTY ND Reflective quantity	Added to Quote
FDI-1210	PDF	ND Reflective	2	Ø 12.5	1	10%	£15.00	QTY ND Reflective quantity	Added to Quote
FDI-1213	PDF	ND Reflective	2	Ø 12.5	1.3	5%	£15.00	QTY ND Reflective quantity	Added to Quote
FDI-1215	PDF	ND Reflective	2	Ø 12.5	1.5	3.20%	£15.00	QTY ND Reflective quantity	Added to Quote
FDI-1220	PDF	ND Reflective	2	Ø 12.5	2	1%	£15.00	QTY ND Reflective quantity	Added to Quote
FDI-2500	PDF	ND Uncoated - Not Filter Clear	2	Ø 25	0.03	93%	£19.00	QTY ND Uncoated - Not Filter Clear quantity	Added to Quote
FDI-2501	PDF	ND Reflective	2	Ø 25	0.1	79%	£19.00	QTY ND Reflective quantity	Added to Quote
FDI-2503		ND Reflective	2	Ø 25	0.3	50%	£19.00	QTY ND Reflective quantity	Added to Quote
FDI-2505	PDF	ND Reflective	2	Ø 25	0.5	32%	£19.00	QTY ND Reflective quantity	Added to Quote
FDI-2506	PDF	ND Reflective	2	Ø 25	0.6	25%	£19.00	QTY ND Reflective quantity	Added to Quote
FDI-2508	PDF	ND Reflective	2	Ø 25	0.8	16%	£19.00	QTY ND Reflective quantity	Added to Quote
FDI-2510	PDF	ND Reflective	2	Ø 25	1	10%	£19.00	QTY ND Reflective quantity	Added to Quote
FDI-2513	PDF	ND Reflective	2	Ø 25	1.3	5%	£19.00	QTY ND Reflective quantity	Added to Quote
FDI-2515	PDF	ND Reflective	2	Ø 25	1.5	3.20%	£19.00	QTY ND Reflective quantity	Added to Quote
FDI-2520	PDF	ND Reflective	2	Ø 25	2	1%	£19.00	QTY ND Reflective quantity	Added to Quote
FDI-5000	PDF	ND Uncoated	2	50 x 50	0.03	93%	£33.50	QTY ND Uncoated quantity	Added to Quote
FDI-5001	PDF	ND Reflective	2	50 x 50	0.1	79%	£33.50	QTY ND Reflective quantity	Added to Quote
FDI-5003		ND Reflective	2	50 x 50	0.3	50%	£33.50	QTY ND Reflective quantity	Added to Quote
FDI-5005	PDF	ND Reflective	2	50 x 50	0.5	32%	£33.50	QTY ND Reflective quantity	Added to Quote
FDI-5006	PDF	ND Reflective	2	50 x 50	0.6	25%	£33.50	QTY ND Reflective quantity	Added to Quote
FDI-5008	PDF	ND Reflective	2	50 x 50	0.8	16%	£33.50	QTY ND Reflective quantity	Added to Quote
FDI-5010	PDF	ND Reflective	2	50 x 50	1	10%	£33.50	QTY ND Reflective quantity	Added to Quote
FDI-5013	PDF	ND Reflective	2	50 x 50	1.3	5%	£33.50	QTY ND Reflective quantity	Added to Quote
FDI-5015	PDF	ND Reflective	2	50 x 50	1.5	3.20%	£33.50	QTY ND Reflective quantity	Added to Quote
FDI-5020	PDF	ND Reflective	2	50 x 50	2	1%	£33.50	QTY ND Reflective quantity	Added to Quote

Part Number

FDI-1200

Uncoated

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.5

Optical Density 0.03

Transmission 93%

Focal Length (mm) 0

UNIT PRICE (1-10)

£15.00 Inc. VAT

Part Number

FDI-1201

Neutral Density Filters - Reflective
