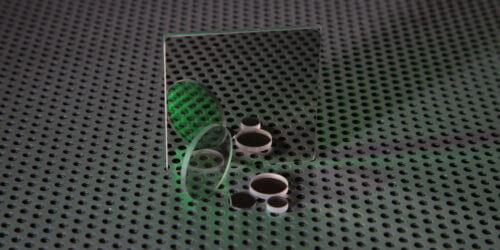

Neutral Density Filters - UV Reflective

UQG Optics UV/VIS Neutral Density Filters have a Ni chrome metallic coating which enhances the absorption to the desired spectral transmission. Part of the rejected light is absorbed and the remainder is reflected, so these filters can also be used as beamsplitters. This coating is coated on UV Fused Silica with a transmission range from 250 to 1000nm range, using 550nm for the density range which in the UV will give you up to 40% higher density. These filters have high surface and parallelism attributes which make them ideal for a range of applications including laser applications.

We supply Optical Neutral Density Filters in stock diameters and squares and can custom make with AR coatings, calibration certificates and boxed.

Please contact our sales team.

View RoHS Statement

Dimensions:	Diameters 5mm to 150mm
	Square/rectangles 5mm x 5mm to 150mm x 150mm
Thickness Range:	0.20mm to 6mm
Surface Flatness:	Up to lambda 4 (@633nm)
Coating Options:	AR coatings one side or both sides
Options:	Identification labels. calibration certificates, spot readings @ wavelengths & storage boxes

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Neutral Density Filters - UV Reflective Stock

Material:

UV Fused Silica Spectrosil® 2000 ND coated

Dimension Tolerance:

Diameters +0.00/-0.10mm

Squares ± 0.10mm

Thickness Tolerance:

+/- 0.10mm

Edge Finish:

Fine ground & chamfered

Surface Quality:

40/20 Scratch/Dig

Surface Flatness:

≤ 1 Fringe (@633nm)

Parallelism:

≤ 3 Arc mins

Coatings:

Ni Chrome metallic coating

Transmission Range:

250nm to 1000nm

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.

Part numbers listed with enquire, please contact us for prices & delivery times.

Select Your Currency:

Part No	Data sheet	Description	Thickness (mm)	Dimensions (mm)	Optical Density	Transmission	Unit price (1-10) excl. VAT	Qty	Qty (10+)Volume pricing available for 10+, please add to quote.
FDU-1201	PDF	UV ND Filter	2	Ø 12.50	0.1	79%	£24.00	QTY UV ND Filter quantity	Added to Quote
FDU-1203	PDF	UV ND Filter	2	Ø 12.50	0.3	50%	£24.00	QTY UV ND Filter quantity	Added to Quote
FDU-1205	PDF	UV ND Filter	2	Ø 12.50	0.5	32%	£24.00	QTY UV ND Filter quantity	Added to Quote
FDU-1206	PDF	UV ND Filter	2	Ø 12.50	0.6	25%	£24.00	QTY UV ND Filter quantity	Added to Quote
FDU-1207	PDF	UV ND Filter	2	Ø 12.50	0.7	20%	£24.00	QTY UV ND Filter quantity	Added to Quote
FDU-1210	PDF	UV ND Filter	2	Ø 12.50	1	10%	£24.00	QTY UV ND Filter quantity	Added to Quote
FDU-1220	PDF	UV ND Filter	2	Ø 12.50	2	1%	£24.00	QTY UV ND Filter quantity	Added to Quote
FDU-1225	PDF	UV ND Filter	2	Ø 12.50	2.5	0.20%	£24.00	QTY UV ND Filter quantity	Added to Quote
FDU-1230	PDF	UV ND Filter	2	Ø 12.50	3	0.10%	£24.00	QTY UV ND Filter quantity	Added to Quote
FDU-5001	PDF	UV ND Filter	2	50 x 50	0.1	79%	£49.00	QTY UV ND Filter quantity	Added to Quote
FDU-5003	PDF	UV ND Filter	2	50 x 50	0.3	50%	£49.00	QTY UV ND Filter quantity	Added to Quote
FDU-5005	PDF	UV ND Filter	2	50 x 50	0.5	32%	£49.00	QTY UV ND Filter quantity	Added to Quote
FDU-5006	PDF	UV ND Filter	2	50 x 50	0.6	25%	£49.00	QTY UV ND Filter quantity	Added to Quote
FDU-5007	PDF	UV ND Filter	2	50 x 50	0.7	20%	£49.00	QTY UV ND Filter quantity	Added to Quote
FDU-5010	PDF	UV ND Filter	2	50 x 50	1	10%	£49.00	QTY UV ND Filter quantity	Added to Quote
FDU-5020	PDF	UV ND Filter	2	50 x 50	2	1%	£49.00	QTY UV ND Filter quantity	Added to Quote
FDU-5025	PDF	UV ND Filter	2	50 x 50	2.5	0.20%	£49.00	QTY UV ND Filter quantity	Added to Quote
FDU-5030	PDF	UV ND Filter	2	50 x 50	3	0.10%	£49.00	QTY UV ND Filter quantity	Added to Quote
