For a quote on your custom requirements please send us your drawing or specification.

UV Fused Silica Windows AR Coated - AR-VIS, NIR-IR, UV & VIS-NIR

UQG supply UV Fused Silica windows and plates AR coated from a stock range or custom coated to your design. UV Fused Silica is very pure material and an uncoated surface has 92% average transmission from 180nm to 2 microns. Adding AR coatings can reduce the reflection to less than 0.2% with transmission over 99%. The AR coatings range from the UV (ultraviolet), VIS (visible) and IR (infrared). Either broadband or single wavelengths coated for high laser damage thresholds or for camera windows for perfect imaging. The UV Fused Silica windows and plates are made to custom specifications of flatness, surface finish and AR coatings. The stock AR coated range includes broadband AR coatings for wavelengths in the UV, VIS-NIR & NIR-IR regions. AR-VIS range, prices on request.

Please contact our sales team.

View RoHS Statement

Dimensions:	Diameters 3mm to 150mm
Thickness Range:	0.1mm to 50mm (subject to dimension)
Dimension/Thickness:	Tol to 0.02mm
Edge Finish:	Ground or polished chamfered angles
Surface Quality:	80/50 to 20/10 scratch/dig
Parallelism:	Up to 10 seconds
Material Options:	Corning 7980, Commercial Grade UV Fused Silica, Heraeus Spectrosil 2000® & Suprasil®
Options:	Wedges, shapes, drilled holes & bevelled angles

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

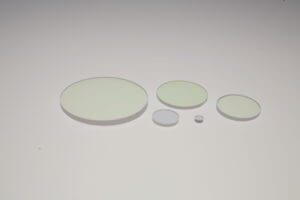

UV Fused Silica Windows - AR Coated UV VIS NIR Stock

Material:

UV Fused Silica windows Spectrosil 2000 ® AR Coated

Dimension Tolerance:

+0.00/-0.20mm 5mm dia +/- 0.10mm

Thickness Tolerance:

±0.10mm

Edge Finish:

Fine ground

Surface Quality:

40/20 Scratch/Dig

Surface Flatness:

1-2 Fringes (@633nm) per 25mm dia

Parallelism:

≤ 3 Arc mins

AR Coatings:

AR-VIS 400-700nm AR Coated both sides R<0.50%

NIR-IR 700nm-1600nm AR Coated both sides R<1%

UV-AR 248nm-400nm AR Coated both sides R<1%

VIS-NIR AR 400nm-1100nm AR Coated both sides R<1%

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.

Part numbers listed with enquire, please contact us for prices & delivery times.

Select Your Currency:

Part No	Data sheet	Description	Diameter (mm)	Thickness (mm)	Unit price (1-10) excl. VAT	Qty	Qty (10+)Volume pricing available for 10+, please add to quote.
FIR-101C		AR NIR/IR 700nm - 1600nm	Ø 10	1	£56.35	QTY AR NIR/IR 700nm - 1600nm quantity	Added to Quote
FIR-125C		AR NIR/IR 700nm - 1600nm	Ø 12.50	2	£48.90	QTY AR NIR/IR 700nm - 1600nm quantity	Added to Quote
FIR-151C		AR NIR/IR 700nm - 1600nm	Ø 15	1	£50.60	QTY AR NIR/IR 700nm - 1600nm quantity	Added to Quote
FIR-152C		AR NIR/IR 700nm - 1600nm	Ø 15	2	£55.20	QTY AR NIR/IR 700nm - 1600nm quantity	Added to Quote
FIR-201C		AR NIR/IR 700nm - 1600nm	Ø 20	1	£58.35	QTY AR NIR/IR 700nm - 1600nm quantity	Added to Quote
FIR-202C		AR NIR/IR 700nm - 1600nm	Ø 20	2	£56.35	QTY AR NIR/IR 700nm - 1600nm quantity	Added to Quote
FIR-251C		AR NIR/IR 700nm - 1600nm	Ø 25	1	£62.65	QTY AR NIR/IR 700nm - 1600nm quantity	Added to Quote
FIR-252C		AR NIR/IR 700nm - 1600nm	Ø 25	2	£63.20	QTY AR NIR/IR 700nm - 1600nm quantity	Added to Quote
FIR-302C		AR NIR/IR 700nm - 1600nm	Ø 30	2	£56.40	QTY AR NIR/IR 700nm - 1600nm quantity	Added to Quote
FIR-403C		AR NIR/IR 700nm - 1600nm	Ø 40	3	£89.70	QTY AR NIR/IR 700nm - 1600nm quantity	Added to Quote
FIR-501C		AR NIR/IR 700nm - 1600nm	Ø 50	1	£119.50	QTY AR NIR/IR 700nm - 1600nm quantity	Added to Quote
FIR-502C		AR NIR/IR 700nm - 1600nm	Ø 50	2	£118.40	QTY AR NIR/IR 700nm - 1600nm quantity	Added to Quote
FIR-503C		AR NIR/IR 700nm - 1600nm	Ø 50	3	£120.70	QTY AR NIR/IR 700nm - 1600nm quantity	Added to Quote
FIR-051C		AR NIR/IR 700nm -1600nm	Ø 5	1	£51.75	QTY AR NIR/IR 700nm -1600nm quantity	Added to Quote
FAV-051C		AR-VIS 400nm - 700nm	Ø 5	1	Use Part Enquiry button to request quote	Part Enquiry	Added to Quote
FAV-052C		AR-VIS 400nm - 700nm	Ø 5	2	Use Part Enquiry button to request quote	Part Enquiry	Added to Quote
FAV-101C		AR-VIS 400nm - 700nm	Ø 10	1	Use Part Enquiry button to request quote	Part Enquiry	Added to Quote
FAV-102C		AR-VIS 400nm - 700nm	Ø 10	2	Use Part Enquiry button to request quote	Part Enquiry	Added to Quote
FAV-125C-		AR-VIS 400nm - 700nm	Ø 12.50	2	Use Part Enquiry button to request quote	Part Enquiry	Added to Quote
FAV-152C		AR-VIS 400nm - 700nm	Ø 15	2	Use Part Enquiry button to request quote	Part Enquiry	Added to Quote
FAV-202C		AR-VIS 400nm - 700nm	Ø 20	2	Use Part Enquiry button to request quote	Part Enquiry	Added to Quote
FAV-251C		AR-VIS 400nm - 700nm	Ø 25	1	Use Part Enquiry button to request quote	Part Enquiry	Added to Quote
FAV-252C		AR-VIS 400nm - 700nm	Ø 25	2	Use Part Enquiry button to request quote	Part Enquiry	Added to Quote
FAV-302C		AR-VIS 400nm - 700nm	Ø 30	2	Use Part Enquiry button to request quote	Part Enquiry	Added to Quote
FAV-501C		AR-VIS 400nm - 700nm	Ø 50	1	Use Part Enquiry button to request quote	Part Enquiry	Added to Quote
FUV-051C	PDF	UV-AR 248nm-400nm	Ø 5	1	£45.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-052C	PDF	UV-AR 248nm-400nm	Ø 5	2	£48.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-101C	PDF	UV-AR 248nm-400nm	Ø 10	1	£46.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-102C	PDF	UV-AR 248nm-400nm	Ø 10	2	£29.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-125C	PDF	UV-AR 248nm-400nm	Ø 12.50	2	£41.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-152C	PDF	UV-AR 248nm-400nm	Ø 15	2	£32.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-202C	PDF	UV-AR 248nm-400nm	Ø 20	2	£44.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-251C	PDF	UV-AR 248nm-400nm	Ø 25	1	£57.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-252C	PDF	UV-AR 248nm-400nm	Ø 25	2	£54.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-253C	PDF	UV-AR 248nm-400nm	Ø 25	3	£48.50	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-302C	PDF	UV-AR 248nm-400nm	Ø 30	2	£52.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-403C	PDF	UV-AR 248nm-400nm	Ø 40	3	£78.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-501C	PDF	UV-AR 248nm-400nm	Ø 50	1	£104.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-502C	PDF	UV-AR 248nm-400nm	Ø 50	2	£103.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-503C	PDF	UV-AR 248nm-400nm	Ø 50	3	£105.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FUV-603C	PDF	UV-AR 248nm-400nm	Ø 60	3	£155.00	QTY UV-AR 248nm-400nm quantity	Added to Quote
FVI-051C	PDF	VIS-NIR AR 400nm-1100nm	Ø 5	1	£45.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-052C	PDF	VIS-NIR AR 400nm-1100nm	Ø 5	2	£48.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-101C	PDF	VIS-NIR AR 400nm-1100nm	Ø 10	1	£49.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-102C	PDF	VIS-NIR AR 400nm-1100nm	Ø 10	2	£46.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-125C	PDF	VIS-NIR AR 400nm-1100nm	Ø 12.5	2	£42.50	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-151C	PDF	VIS-NIR AR 400nm-1100nm	Ø 15	1	£44.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-152C	PDF	VIS-NIR AR 400nm-1100nm	Ø 15	2	£48.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-202C	PDF	VIS-NIR AR 400nm-1100nm	Ø 20	2	£49.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-251C	PDF	VIS-NIR AR 400nm-1100nm	Ø 25	1	£54.50	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-252C	PDF	VIS-NIR AR 400nm-1100nm	Ø 25	2	£55.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-253C	PDF	VIS-NIR AR 400nm-1100nm	Ø 25	3	£43.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-302C	PDF	VIS-NIR AR 400nm-1100nm	Ø 30	2	£49.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-403C	PDF	VIS-NIR AR 400nm-1100nm	Ø 40	3	£78.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-501C	PDF	VIS-NIR AR 400nm-1100nm	Ø 50	1	£104.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-502C	PDF	VIS-NIR AR 400nm-1100nm	Ø 50	2	£103.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-503C	PDF	VIS-NIR AR 400nm-1100nm	Ø 50	3	£105.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote
FVI-603C	PDF	VIS-NIR AR 400nm-1100nm	Ø 60	3	£155.00	QTY VIS-NIR AR 400nm-1100nm quantity	Added to Quote

Part Number

FIR-051C

AR NIR/IR 700nm -1600nm

Diameter (mm) Ø 5

Thickness (mm) 1

UNIT PRICE (1-10)

£51.75 Inc. VAT

Part Number

FIR-101C

AR NIR/IR 700nm – 1600nm

Diameter (mm) Ø 10

Thickness (mm) 1

UNIT PRICE (1-10)

£56.35 Inc. VAT

Part Number

FIR-125C

AR NIR/IR 700nm – 1600nm

Diameter (mm) Ø 12.50

Thickness (mm) 2

UNIT PRICE (1-10)

£48.90 Inc. VAT

Part Number

FIR-151C

AR NIR/IR 700nm – 1600nm

Diameter (mm) Ø 15

Thickness (mm) 1

UNIT PRICE (1-10)

£50.60 Inc. VAT

Part Number

FIR-152C

AR NIR/IR 700nm – 1600nm

Diameter (mm) Ø 15

Thickness (mm) 2

UNIT PRICE (1-10)

£55.20 Inc. VAT

Part Number

FIR-201C

AR NIR/IR 700nm – 1600nm

Diameter (mm) Ø 20

Thickness (mm) 1

UNIT PRICE (1-10)

£58.35 Inc. VAT

Part Number

FIR-202C

AR NIR/IR 700nm – 1600nm

Diameter (mm) Ø 20

Thickness (mm) 2

UNIT PRICE (1-10)

£56.35 Inc. VAT

Part Number

FIR-251C

AR NIR/IR 700nm – 1600nm

Diameter (mm) Ø 25

Thickness (mm) 1

UNIT PRICE (1-10)

£62.65 Inc. VAT

Part Number

FIR-252C

AR NIR/IR 700nm – 1600nm

Diameter (mm) Ø 25

Thickness (mm) 2

UNIT PRICE (1-10)

£63.20 Inc. VAT

Part Number

FIR-302C

AR NIR/IR 700nm – 1600nm

Diameter (mm) Ø 30

Thickness (mm) 2

UNIT PRICE (1-10)

£56.40 Inc. VAT

Part Number

FAV-051C

AR-VIS 400nm – 700nm

Diameter (mm) Ø 5

Thickness (mm) 1

Part Enquiry

Part Number

FAV-052C

AR-VIS 400nm – 700nm

Diameter (mm) Ø 5

Thickness (mm) 2

Part Enquiry

Part Number

FAV-101C

AR-VIS 400nm – 700nm

Diameter (mm) Ø 10

Thickness (mm) 1

Part Enquiry

Part Number

FAV-102C

AR-VIS 400nm – 700nm

Diameter (mm) Ø 10

Thickness (mm) 2

Part Enquiry

Part Number

FAV-125C-

AR-VIS 400nm – 700nm

Diameter (mm) Ø 12.50

Thickness (mm) 2

Part Enquiry

Part Number

FAV-152C

AR-VIS 400nm – 700nm

Diameter (mm) Ø 15

Thickness (mm) 2

Part Enquiry

Part Number

FAV-202C

AR-VIS 400nm – 700nm

Diameter (mm) Ø 20

Thickness (mm) 2

Part Enquiry

Part Number

FAV-252C

AR-VIS 400nm – 700nm

Diameter (mm) Ø 25

Thickness (mm) 2

Part Enquiry

Part Number

FAV-251C

AR-VIS 400nm – 700nm

Diameter (mm) Ø 25

Thickness (mm) 1

Part Enquiry

Part Number

FAV-302C

AR-VIS 400nm – 700nm

Diameter (mm) Ø 30

Thickness (mm) 2

Part Enquiry

Part Number

FAV-501C

AR-VIS 400nm – 700nm

Diameter (mm) Ø 50

Thickness (mm) 1

Part Enquiry

Part Number

FIR-403C

AR NIR/IR 700nm – 1600nm

Diameter (mm) Ø 40

Thickness (mm) 3

UNIT PRICE (1-10)

£89.70 Inc. VAT

Part Number

FIR-501C

AR NIR/IR 700nm – 1600nm

Diameter (mm) Ø 50

Thickness (mm) 1

UNIT PRICE (1-10)

£119.50 Inc. VAT

Part Number

FIR-502C

AR NIR/IR 700nm – 1600nm

Diameter (mm) Ø 50

Thickness (mm) 2

UNIT PRICE (1-10)

£118.40 Inc. VAT

Part Number

FUV-051C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 5

Thickness (mm) 1

UNIT PRICE (1-10)

£45.00 Inc. VAT

Part Number

FUV-052C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 5

Thickness (mm) 2

UNIT PRICE (1-10)

£48.00 Inc. VAT

Part Number

FUV-101C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 10

Thickness (mm) 1

UNIT PRICE (1-10)

£46.00 Inc. VAT

Part Number

FUV-102C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 10

Thickness (mm) 2

UNIT PRICE (1-10)

£29.00 Inc. VAT

Part Number

FUV-125C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 12.50

Thickness (mm) 2

UNIT PRICE (1-10)

£41.00 Inc. VAT

Part Number

FUV-152C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 15

Thickness (mm) 2

UNIT PRICE (1-10)

£32.00 Inc. VAT

Part Number

FUV-202C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 20

Thickness (mm) 2

UNIT PRICE (1-10)

£44.00 Inc. VAT

Part Number

FUV-251C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 1

UNIT PRICE (1-10)

£57.00 Inc. VAT

Part Number

FUV-252C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 2

UNIT PRICE (1-10)

£54.00 Inc. VAT

Part Number

FUV-253C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 3

UNIT PRICE (1-10)

£48.50 Inc. VAT

Part Number

FUV-302C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 30

Thickness (mm) 2

UNIT PRICE (1-10)

£52.00 Inc. VAT

Part Number

FUV-403C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 40

Thickness (mm) 3

UNIT PRICE (1-10)

£78.00 Inc. VAT

Part Number

FUV-501C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 50

Thickness (mm) 1

UNIT PRICE (1-10)

£104.00 Inc. VAT

Part Number

FUV-502C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 50

Thickness (mm) 2

UNIT PRICE (1-10)

£103.00 Inc. VAT

Part Number

FIR-503C

AR NIR/IR 700nm – 1600nm

Diameter (mm) Ø 50

Thickness (mm) 3

UNIT PRICE (1-10)

£120.70 Inc. VAT

Part Number

FUV-503C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 50

Thickness (mm) 3

UNIT PRICE (1-10)

£105.00 Inc. VAT

Part Number

FUV-603C

UV-AR 248nm-400nm

PDF Data sheet

Diameter (mm) Ø 60

Thickness (mm) 3

UNIT PRICE (1-10)

£155.00 Inc. VAT

Part Number

FVI-051C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 5

Thickness (mm) 1

UNIT PRICE (1-10)

£45.00 Inc. VAT

Part Number

FVI-052C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 5

Thickness (mm) 2

UNIT PRICE (1-10)

£48.00 Inc. VAT

Part Number

FVI-101C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 10

Thickness (mm) 1

UNIT PRICE (1-10)

£49.00 Inc. VAT

Part Number

FVI-102C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 10

Thickness (mm) 2

UNIT PRICE (1-10)

£46.00 Inc. VAT

Part Number

FVI-125C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 12.5

Thickness (mm) 2

UNIT PRICE (1-10)

£42.50 Inc. VAT

Part Number

FVI-151C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 15

Thickness (mm) 1

UNIT PRICE (1-10)

£44.00 Inc. VAT

Part Number

FVI-152C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 15

Thickness (mm) 2

UNIT PRICE (1-10)

£48.00 Inc. VAT

Part Number

FVI-202C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 20

Thickness (mm) 2

UNIT PRICE (1-10)

£49.00 Inc. VAT

Part Number

FVI-251C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 1

UNIT PRICE (1-10)

£54.50 Inc. VAT

Part Number

FVI-252C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 2

UNIT PRICE (1-10)

£55.00 Inc. VAT

Part Number

FVI-253C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 3

UNIT PRICE (1-10)

£43.00 Inc. VAT

Part Number

FVI-302C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 30

Thickness (mm) 2

UNIT PRICE (1-10)

£49.00 Inc. VAT

Part Number

FVI-403C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 40

Thickness (mm) 3

UNIT PRICE (1-10)

£78.00 Inc. VAT

Part Number

FVI-501C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 50

Thickness (mm) 1

UNIT PRICE (1-10)

£104.00 Inc. VAT

Part Number

FVI-502C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 50

Thickness (mm) 2

UNIT PRICE (1-10)

£103.00 Inc. VAT

Part Number

FVI-503C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 50

Thickness (mm) 3

UNIT PRICE (1-10)

£105.00 Inc. VAT

Part Number

FVI-603C

VIS-NIR AR 400nm-1100nm

PDF Data sheet

Diameter (mm) Ø 60

Thickness (mm) 3

UNIT PRICE (1-10)

£155.00 Inc. VAT

UV Fused Silica Windows AR Coated - AR-VIS, NIR-IR, UV & VIS-NIR

Select Your Currency:

Related categories

UV Fused Silica Windows

UV Fused Silica Windows - Precision

Sapphire Windows - AR Coated One Side or Both Sides

AR Coated Glass Standard - Windows, Plates & Sheets
