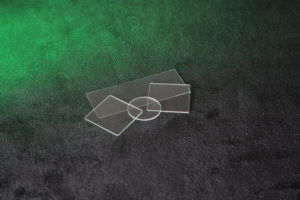

AR Coated Glass Precision - Windows, Plates & Sheets

AR coated precision glass is a multi-layer dielectric sheet glass AR coated. It has excellent durability and high transmission. The glass is coated to MILSPEC MIL-C-675C and is stocked in a good size range of thicknesses and sizes. Designed to minimize reflection and maximize transmittance on glass substrates over the visible spectrum.

UQG supply the AR coated precision glass either as single or double sides coated in a stock or custom made size range in diameters, squares, rectangles and shapes.

Please contact our sales team.

RoSH-logo View RoHS Statement
Dimensions: Diameters 5mm to 550mm
Squares/Rectangles 1mm x 1mm to 580mm x 580mm
Thickness Range: 1.20mm, 1.60mm, 2.30mm & 3.00mm
Coating Options: AR Coated one or both sides
Options: Toughened, laminated, drilled, bevelled angles, shapes & screen printed

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

AR Coated Glass Precision - Windows, Plates & Sheets Stock
Material:
MILGLASS - AR Coated Sheet Float Glass
Diameter Tolerance:
+0.00/-0.20 As cut & chamfered 25mm dia & under
+0.10/-0.30 As cut & chamfered over 25mm dia
Squares Tolerance:
± 0.20mm
Thickness Tolerance:
± 0.15mm
Edge Finish:
25mm dia & below ground & chamfered
Over 25mm dia as cut & chamfered
Surface Quality:
40/20 Scratch/Dig
Surface Flatness:
≤ 1 Fringes (@633nm) per 25mm square
Transmission:
R≤ 0.30 avg 425-700 T>99% avg
Coating:
Multi-Layer dielectric coating one side & both Sides
MILSPEC MIL-C-675C

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.

Part numbers listed with enquire, please contact us for prices & delivery times.

Select Your Currency:

currency flag select GBP currency flag select EUR currency flag select USD
Part No Data
sheet		 Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
excl. VAT
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
WAP-512 PDF AR VIS Both Sides - Precision Ø 51 £15.50
QTY
Added to Quote
WAP-112 PDF AR VIS Both Sides - Precision Ø 101 £15.60
QTY
Added to Quote
WAP-1212 PDF AR VIS Both Sides - Precision Ø 12.501 £15.80
QTY
Added to Quote
WAP-1223 PDF AR VIS Both Sides - Precision Ø 12.502.30 £16.00
QTY
Added to Quote
WAP-1512 PDF AR VIS Both Sides - Precision Ø 151 £16.25
QTY
Added to Quote
WAP-1523 PDF AR VIS Both Sides - Precision Ø 152.30 £16.50
QTY
Added to Quote
WAP-2012 PDF AR VIS Both Sides - Precision Ø 201 £19.70
QTY
Added to Quote
WAP-2023 PDF AR VIS Both Sides - Precision Ø 202.30 £21.00
QTY
Added to Quote
WAP-2511 PDF AR VIS One Side - Precision Ø 251 £19.80
QTY
Added to Quote
WAP-2512 PDF AR VIS Both Sides - Precision Ø 251 £21.60
QTY
Added to Quote
WAP-2516 PDF AR VIS Both Sides - Precision Ø 251.60 £21.50
QTY
Added to Quote
WAP-2523 PDF AR VIS Both Sides - Precision Ø 252.30 £21.80
QTY
Added to Quote
WAP-2530 PDF AR VIS Both Sides - Precision Ø 253 £22.00
QTY
Added to Quote
WAP-4023 PDF AR VIS Both Sides - Precision Ø 402.30 £26.00
QTY
Added to Quote
WAP-4030 PDF AR VIS Both Sides - Precision Ø 403 £28.00
QTY
Added to Quote
WAP-5023 PDF AR VIS Both Sides - Precision Ø 502.30 £35.00
QTY
Added to Quote
WAP-5030 PDF AR VIS Both Sides - Precision Ø 503 £36.50
QTY
Added to Quote
WAP-5051 PDF AR VIS One Side - Precision 50 x 501 £22.60
QTY
Added to Quote
WAP-5001 PDF AR VIS Both Sides - Precision 50 x 501.60 £29.00
QTY
Added to Quote
WAP-5002 PDF AR VIS Both Sides - Precision 50 x 502.30 £28.00
QTY
Added to Quote
WAP-5003 PDF AR VIS Both Sides - Precision 50 x 503 £31.00
QTY
Added to Quote
WAP-6001 PDF AR VIS Both Sides - Precision 60 x 601 £39.00
QTY
Added to Quote
WAP-1051 PDF AR VIS Both Sides - Precision 105 x 1051 £94.00
QTY
Added to Quote

Part Number

WAP-512

AR VIS Both Sides – Precision

PDF Data sheet

Dimensions (mm) Ø 5

Thickness (mm) 1

UNIT PRICE (1-10)

£15.50 Inc. VAT

QTY

Part Number

WAP-112

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 10

UNIT PRICE (1-10)

£15.60 Inc. VAT

QTY

Part Number

WAP-1212

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 12.50

UNIT PRICE (1-10)

£15.80 Inc. VAT

QTY

Part Number

WAP-1223

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 2.30

Dimensions (mm) Ø 12.50

UNIT PRICE (1-10)

£16.00 Inc. VAT

QTY

Part Number

WAP-1512

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 15

UNIT PRICE (1-10)

£16.25 Inc. VAT

QTY

Part Number

WAP-1523

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 2.30

Dimensions (mm) Ø 15

UNIT PRICE (1-10)

£16.50 Inc. VAT

QTY

Part Number

WAP-2012

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 20

UNIT PRICE (1-10)

£19.70 Inc. VAT

QTY

Part Number

WAP-2023

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 2.30

Dimensions (mm) Ø 20

UNIT PRICE (1-10)

£21.00 Inc. VAT

QTY

Part Number

WAP-2511

AR VIS One Side – Precision

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£19.80 Inc. VAT

QTY

Part Number

WAP-2512

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£21.60 Inc. VAT

QTY

Part Number

WAP-2516

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 1.60

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£21.50 Inc. VAT

QTY

Part Number

WAP-2523

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 2.30

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£21.80 Inc. VAT

QTY

Part Number

WAP-2530

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£22.00 Inc. VAT

QTY

Part Number

WAP-4023

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 2.30

Dimensions (mm) Ø 40

UNIT PRICE (1-10)

£26.00 Inc. VAT

QTY

Part Number

WAP-4030

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 40

UNIT PRICE (1-10)

£28.00 Inc. VAT

QTY

Part Number

WAP-5023

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 2.30

Dimensions (mm) Ø 50

UNIT PRICE (1-10)

£35.00 Inc. VAT

QTY

Part Number

WAP-5030

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 50

UNIT PRICE (1-10)

£36.50 Inc. VAT

QTY

Part Number

WAP-5051

AR VIS One Side – Precision

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£22.60 Inc. VAT

QTY

Part Number

WAP-5001

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 1.60

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£29.00 Inc. VAT

QTY

Part Number

WAP-5002

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 2.30

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£28.00 Inc. VAT

QTY

Part Number

WAP-5003

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£31.00 Inc. VAT

QTY

Part Number

WAP-6001

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 60 x 60

UNIT PRICE (1-10)

£39.00 Inc. VAT

QTY

Part Number

WAP-1051

AR VIS Both Sides – Precision

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 105 x 105

UNIT PRICE (1-10)

£94.00 Inc. VAT

QTY
