For a quote on your custom requirements please send us your drawing or specification.

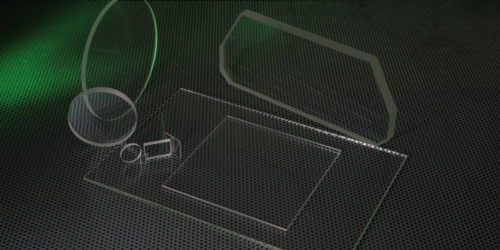

White Float Glass Windows & Plates

White Float Glass is a low iron glass which is extra clear and virtually colourless and unlike other Float glass there is no green tinge to it. It has a very high light transmission which makes the solar energy transmission high because of the lower iron content. Due to its optical clarity this glass is widely used in optical and camera systems due to its high transmission. It’s a low cost alternative to use instead optical glasses eg. N-BK7 in windows and substrates. It has very good flatness for a float glass material and supplied in a range of standard sheet thicknesses.

UQG optics White Float Glass windows and plates are made as diameters, squares in the stock range or custom made to your design.

Please contact our sales team.

View RoHS Statement

Dimensions:	Diameters 5mm to 500mm
	Squares/Rectangles 1mm x 1mm to 1000mm x 600mm
Thickness Range:	0.70mm, 1.10mm, 2.10mm, 3mm,4mm to 15mm
Material Options:	Pilkington Optiwhite, AR coated splutter coating 2mm,3mm 4mm, 6mm & 10mm
Coating Options:	AR optical coatings
Options:	Toughened, laminated, drilled, bevelled angles, shapes, toughened, & screen printed

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

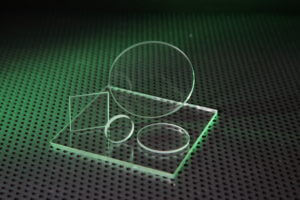

White Float Glass Windows and Plates Stock

Material:

Clear white Float low iron glass

Dimension Tolerance:

Diameters +0.00/-0.20mm

Squares ±0.15mm

Thickness Tolerance:

± 0.10mm

Edge Finish:

Fine ground & chamfered or as cut/chamfered

Surface Quality:

80/50 Scratch/Dig plate finish

Surface Flatness:

5-10 Fringes (@633nm) per 25mm dia

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.

Part numbers listed with enquire, please contact us for prices & delivery times.

Select Your Currency:

Part No	Data sheet	Description	Thickness (mm)	Dimensions (mm)	Unit price (1-10) excl. VAT	Qty	Qty (10+)Volume pricing available for 10+, please add to quote.
WFW-101	PDF	White Float Glass Window	1.10	Ø 10	£6.00	QTY White Float Glass Window quantity	Added to Quote
WFW-251	PDF	White Float Glass Window	1.10	Ø 25	£6.80	QTY White Float Glass Window quantity	Added to Quote
WFW-253	PDF	White Float Glass Window	3	Ø 25	£7.50	QTY White Float Glass Window quantity	Added to Quote
WFW-401	PDF	White Float Glass Window	1.10	Ø 40	£7.00	QTY White Float Glass Window quantity	Added to Quote
WFW-503	PDF	White Float Glass Window	3	Ø 50	£10.00	QTY White Float Glass Window quantity	Added to Quote
WFP-2521	PDF	White Float Glass Plate	1.10	25 x 25	£6.00	QTY White Float Glass Plate quantity	Added to Quote
WFP-5051	PDF	White Float Glass Plate	1.10	50 x 50	£8.00	QTY White Float Glass Plate quantity	Added to Quote
WFP-1001	PDF	White Float Glass Plate	1.10	100 x 100	£11.50	QTY White Float Glass Plate quantity	Added to Quote

Part Number

WFW-101

White Float Glass Window

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 10

UNIT PRICE (1-10)

£6.00 Inc. VAT

Part Number

WFW-251

White Float Glass Window

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£6.80 Inc. VAT

Part Number

WFW-253

White Float Glass Window

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£7.50 Inc. VAT

Part Number

WFW-401

White Float Glass Window

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 40

UNIT PRICE (1-10)

£7.00 Inc. VAT

Part Number

WFW-503

White Float Glass Window

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 50

UNIT PRICE (1-10)

£10.00 Inc. VAT

Part Number

WFP-2521

White Float Glass Plate

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 25 x 25

UNIT PRICE (1-10)

£6.00 Inc. VAT

Part Number

WFP-5051

White Float Glass Plate

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£8.00 Inc. VAT

Part Number

WFP-1001

White Float Glass Plate

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 100 x 100

UNIT PRICE (1-10)

£11.50 Inc. VAT
